Meanwell 6500nit IP67 PH5 Stadium LED Display ROHS Shenzhen Nova
MBI5024 DC5V Synchronous Full Color Iron 1200W
PH5 Stadium LED Display CAD Drawing and Fixing
1. We provide CAD drawing on how to fix up the display for free and
some other expert suggestion.
2. We will send our engineers to your place if we are expected
after our negotiation.
PH5 Stadium LED Display Warranty
We guarantee all our displays, modules, parts for two full years.
During this time, we will replace or amend all our goods for free
if there is something wrong with them. We provide lifetime
maintenance and charge only for the raw materials. We provide
technology training for free, which contains the operation and
maintenance training of the LED screens in the factory. We also
provide the operation manual, software, test report and so on. Any
associated CAD drawing on how to fix up the display and some other
expert suggestion will be provided.
PH5 Stadium LED Display Technology Training
1. We provide the technology training for free, which contains the
operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.
PH5 Stadium LED Display Additional service
We provide you the forwarding information, and some other
information ,such as flight box, structure information for your
reference for free.
PH5 Stadium LED Display Desicriptions
(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are
comprehensive, and also we have three display mode as VGA+VIDE and
VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7
millions, and the brightness, contrast, saturation, chroma can be
adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video,
2-dimention, 3-dimention cartoon and other information with your PC
does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content,
and also can be controlled remotely via VPM+ADSL.
PH5 Stadium LED Display AFQ
Q1: What's the controlling system?
We have developed our own control system, all the configuration
programes already embedded into the Led Panel Already, no need any
setting and no need to adjusting your control PC, then no need to
connect with your control PC via rj45 cable too, very easy control
by your Mobile or Tablet...... via wifi can control the whole
screen easily.
Or customer can ask for other control system like Novastat/
Linsn/Color Light ......
Q2: How to know the suitable led display for my case?
First tell we the screen size on Height and Width you need, then
main viewing distance, and the content you want to show on the
screen; Or if you have special demands like on control or
components you need, then we can ODM for you.Q3: What is your quality guarantee?
1. 2 years warranty
Free replacement and maintenance for spare parts is offered within
warranty period. Free maintenance service is offered before
product’s life expires.
2. After sales warranty
Complaint respond period not exceed 24 hours; maintenance guidance
and problem solution supplied in 48 hours.
PH5 Stadium LED Display Parameter
| Item | Technical Specification |
| Pixel | Pixel pitch: 5mm |
| Pixel configuration: 1R1G1B |
| Brightness: Red: 1000mcd Green: 2300mcd Blue: 600mcd |
| Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm |
| Module resolution: 32x32 pixels |
| Module | Module size: 160mmx160mm |
| Cabinet size: 640mm×640mm×75mm |
| Cabinet | Cabinet resolution: 32768 pixels |
| Cabinet material: Die-casting Aluminum |
| Gross weight: 25kg |
| Module quantity: 16 pcs= 4(w) x 4(h) |
| Power consumption : Max.:900W/m² Everage: 400W/m² |
| Screen | Drive method: 1/16 scanning |
| Brightness:6500cd/m² |
| IC driver: MBI 5024 |
| Density: 65410 pixel/m² |
| Whole display flatness: ≤ 1mm juncture |
| Best view distance: ≥ 5m |
| Viewing angle: Horizontal: 120° Vertical: 60° |
| Humidity(RH): ≤ 90~95% |
| Working temperature: from -30°C to +60°C |
| Working voltage: AC220V/110V±10% |
| Refresh frequency: 2400Hz(Zdec) ≥ 300Hz(Linsn) |
| Frame rate: ≥ 60Hz |
| Protection grade: IP67 |
| MTBF: More than 10000hrs |
| Life time: 100,000 hrs |
| Control system | Control system: Linsn |
| Signal interface: DVI |
| Communication distance: Internet cable: ≤120m / Fiber cable: 1000m |
| Systems operating platforms : XP,WINDOWS(WIN95,WIN98,WIN2000) |

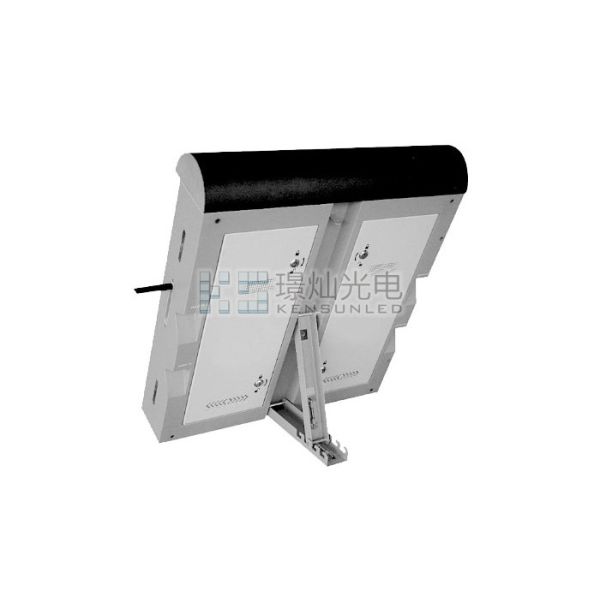

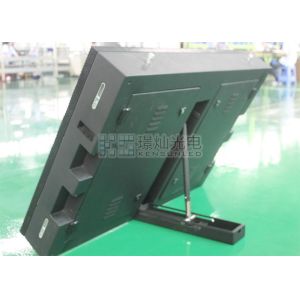

PH5 Stadium LED Display Pictures
